Bringing Next-Generation Semiconductor Devices To Life

Most prototypes never scale. Ours do. On Shore. On Spec. On Time.

Design for manufacturing, process development, proof of concept, and low to medium volume (OSAT) semiconductor packaging in Silicon Valley.

Microelectronics Assembly and Advanced Packaging

AmTECH Microelectronics is a custom microelectronics assembly and packaging services company, based in Silicon Valley. AmTECH has over 30 years of experience in process development, design for manufacturing (DFM), and on-shore prototype to production. AmTECH’s assembly processes include: flip chip bonding, die bonding, fine and heavy wire bonding, vacuum reflow, silver sintering, dispense and encapsulation, and SMT assembly. Our facility features a fully equipped cleanroom with advanced, state-of-the-art automated equipment. AmTECH is proud to be ISO 9001:2015 and ISO 13485:2016 certified, ITAR registered, in compliance with IPC-A-610, and follows MIL-STD-883 workmanship standards.

Pure Play Semiconductor Packaging Solutions

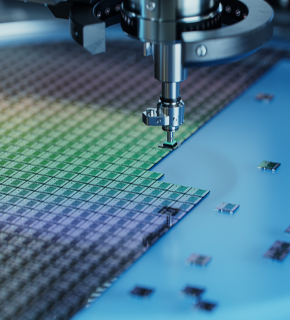

Microelectronics Assembly Services

We specialize in the assembly, packaging, and interconnection of miniature electronic components, enabling our customers to achieve next-generation performance, quality, and reliability.

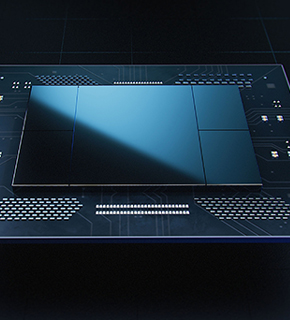

Advanced Packaging Services

Advanced packaging refers to a variety of packaging technologies, including Heterogeneous Integration (HI), 2.5D, 3D, Chiplets, and Co-Packaged Optics (CPO).

Process Development Services

Design for Manufacturing (DFM) is essential for the successful and cost-effective production of microelectronics assembly and packaging devices.

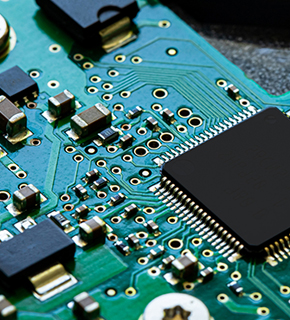

SMT Assembly Services

Surface Mount Technology (SMT) is the most widely used manufacturing process for producing electronic circuits, where components known as surface-mount devices are placed directly onto the surface of Printed Circuit Boards (PCBs).

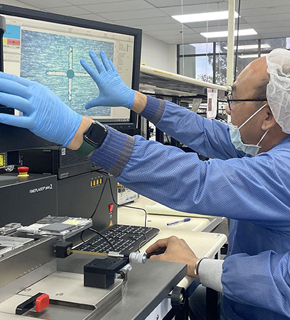

Flip Chip Bonding Services

Flip chip bonding comes in two main forms: Controlled Collapse Chip Connection (C4) with pitch sizes from 150um to 300um and Cu Pillar with pitch sizes from 25um to 140um.

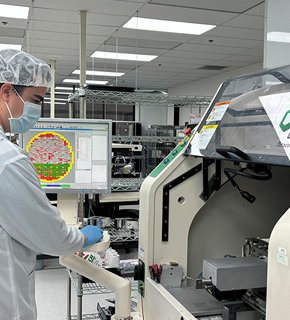

Die Bonding Services

Die bonding is the process of attaching a semiconductor die (IC chip) to a substrate or package. Common techniques include epoxy, eutectic, and silver sintering. Each method has its advantages.

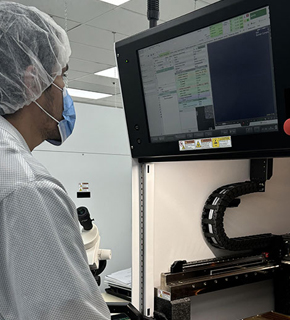

Wire Bonding Services

AmTECH supports various processes like Au ball, Au wedge, Al wedge, gold stud bumping, and ribbon bonding for both fine and large wire diameters.

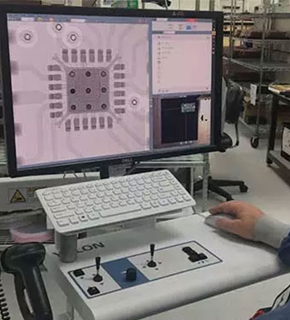

Metrology & Inspection Services

AmTECH uses “best in-class” metrology and inspection tools such as 3D automated optical inspection (AOI), 160Kv XRAY, 3D digital microscope, 3D optical profilometer, and wire bond test equipment.
  • Microelectronics Assembly
  • Advanced Packaging
  • Process Development
  • Prototype Production
  • Volume Production
  • Metrology and Inspection
  • Flip Chip Bonding
  • Die Bonding
  • Wire Bonding
  • Encapsulation
  • Vacuum Reflow
  • SMT Assembly
  • Defense/ Aerospace
  • Telecom/ Datacom
  • Photonics/ Lightwave
  • Medical/ Biotech
  • Power Electronics
  • MEMS Sensors, Imaging

U.S. Based / Onshore OSAT Services

AmTECH’s location – at the heart of Silicon Valley – offers customers the advantage of rapid turnaround times and local access to a facility with volume production. AmTECH’s strong partnerships across the San Francisco Bay Area provides an integrated one-stop solution, for taking your product from concept to market. By working with an ITAR-registered company, you can protect your intellectual property by building your product on-shore. We invite you to schedule a visit to our facility, where you can meet directly our on-site process engineers to discuss your project.

Endorsements

AmTECH emphasizes a proactive approach to manufacturing by anticipating potential issues before they negatively impact our product quality. We are very happy with their performance throughout the years.

KLA

AmTECH consistently exceeds expectations for quality and on-time delivery, especially for our complex and unique products, indicating AmTECH is a reliable and high-quality supplier.

Broadcom

AmTECH is a significant resource for understanding and managing the design constraints associated with die bonding and wire bonding, ensuring the quality, and reliability, of our electronic devices.

Advanced Optronics
Mission statement

To provide excellent assembly and packaging solutions for microelectronics and photonics driven by quality, on-time delivery, and responsive communication to the customer.

Vision statement

To empower the creation of transformative technologies that redefine industries and shape the future by fostering innovation, collaboration, and sustainable practices.

Rapid engineering response and support

Our strong “hands-on” engineering team comes from design, process, and manufacturing backgrounds with over 50 years of combined industry experience.

Start small and scale up quickly

Bring your product from proof of concept to market with design for manufacturing, process development, and rapid prototype to production with on-shore manufacturing.

Technical Papers

The Argument For Indium Solder in Cryogenics & Quantum Grade Packaging

Pressure Assisted Vs Pressureless Silver Sintering

A Comparative Analysis of Flip Chip Bonding and Active Alignment in Advanced Packaging

TECHNOLOGY focus for different markets:
  • Mixed Technology Assembly.
  • Chip on Board, Flex (COB, COF).
  • Hybrids Circuits on Al2O3 or AlN.
  • MCM, SiP, Heterogeneous Integration.
  • Microelectronics Assembly and Packaging.
  • Organic and Ceramic substrates or packages.
QUICK solutions to accelerate time to market:
  • Design for Manufacturing (DFM).
  • Engineering Process Development.
  • Project Quotes 1-5 business days.
  • SMT Assembly 3-10 business days.
  • Microelectronics Assembly 3-10 business days.
  • SMT plus Microelectronics Assembly 7-15 business days.
